Single conveying unit

Granular material conveyor GKS 50

The main part of the GKS 50, a small conveying machine for plastic pallets and -grinding stock, is
a 2 liter stainless steel container. The lid and material precipator are linked with a movable hinge.
The big filter in the inside makes the surrounding area dust free.

GKS 50 with hinge	Standard equipment:  2 liter stainless steel container 850 W alternating current compressor Small controller Air pressure filter dedusting  3m PUR delivery hose Suction lance Air pressure filter dedusting Additional components: Two components valve  Flashlight

Single suction conveyor VSF 101

Construction analog to GKS 50, but with 6 Liter volume.




VSF 101 with hinge	Standard equipment: 6 liter stainless steel container 950 W alternating current compressor Small controller 3m PUR delivery hose Suction lance Air pressure filter dedusting Additional components: Two components valve  Flashlight

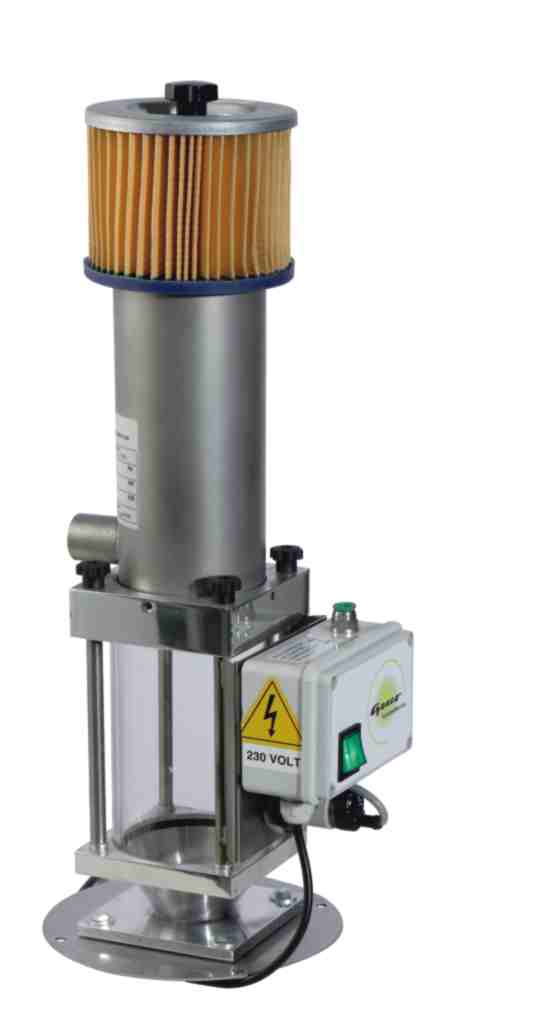

Gerco conveyor GPF 01

The vacuum conveyor Gerco GPF Series 01 will be used to promote all plastic granules used.
The devices operate on the Venturi principle with air and used for automatic Filling of
GERCO - dryers with a max. individual tank capacity of 110 liters and plastics machines.
The granules GERCO dryers have special recording elements to connect the device and
conveyor dryers. The GPF 01 reaches a max. Capacity of 20 kg / h.

IF 01	Standard equipment:  2 Liter container without blower  3m PUR delivery hose electrical control

technical Data	GKS 50	VSF 101	IF 01	IF 03
Conveying capacity in kg/h	50	100	20	40
Conveying height in m (max.)	2,5	3,0	2	2
Conveying length in m (max.)	10	10	3	3
Connected load in kW	230/0,85	230/1,1	230/0,05	230/0,05
Air capacity in m³/h*	16	20
Product information	gks50.pdf	vsf101.pdf	if01.pdf	if03.pdf
